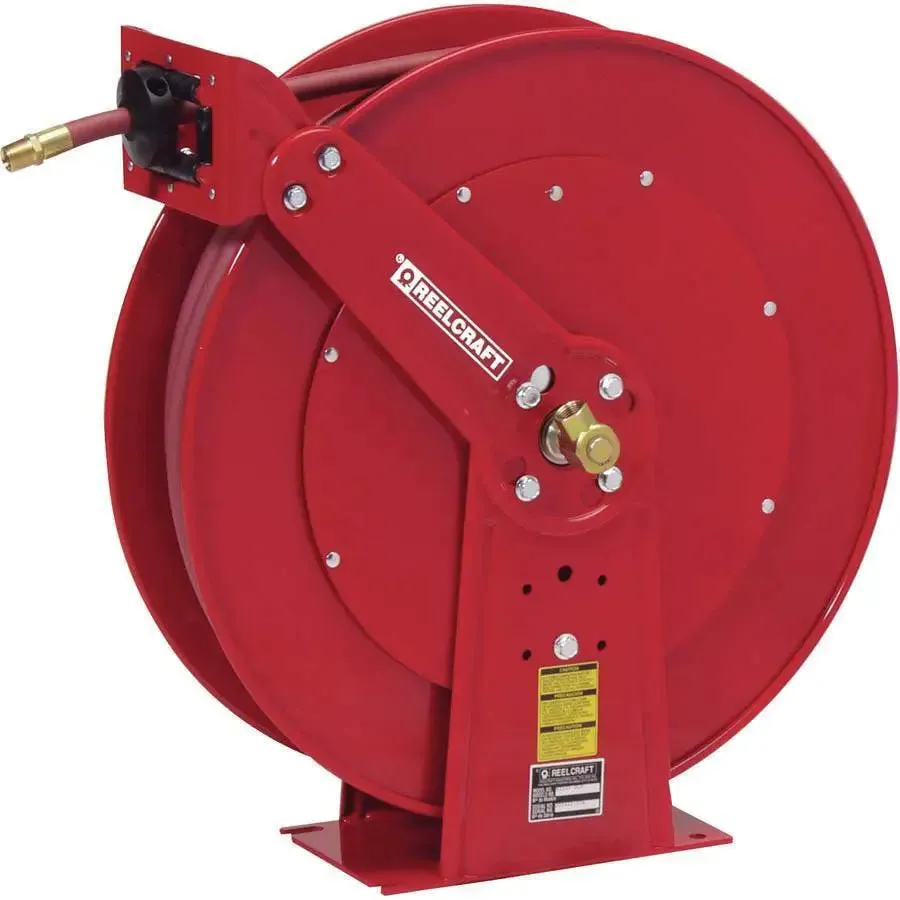

Reelcraft HD Low-Pressure Air/Water Reel w/ Adjustable Guide Arm:
Reelcraft's Series 80000 spring retractable reels incorporate the most current design and manufacturing techniques to guarantee long life and trouble-free performance. All-steel construction and a baked-on powder coat finish combine to produce a rugged, corrosion-resistant product suitable for a wide variety of heavy-duty applications.
Features:
- Hose anti-latch-out feature ensures the hose retracts every time.
- Guide arm is field adjustable for wall, ceiling, or truck mounting positions.
- Dual pedestal base and guide arm design, structurallyreinforced.
- Five-in-one heat-treated aluminum casting incorporates the main shaft, ratchet, spring arbor, and inlet/outlet plumbing in one piece casting.
- Containerized spring assembly. Provides safe and easy handling during maintenance.
- Two sealed ball bearings for smooth rotation of the main shaft.
Specs:
RC-81100-OLP
Series: 80000
O.D.: 0.600 in
Outlet (M) NPTF: 3/8 in
Inlet (F) NPTF: 1/2 in
Hose Length: 100 ft
Hose Included: Yes
Thread Type: NPT
Max. Temperature: 150 Deg. F
I.D.: 3/8 in
Pressure: 300 psi
RC-82075-OLP
Series: 80000
O.D.: 0.750 in
Outlet (M) NPTF: 1/2 in
Inlet (F) NPTF: 1/2 in
Hose Length: 75 ft
Hose Included: Yes
Thread Type: NPT
Max. Temperature: 150 Deg. F
I.D.: 1/2 in
Pressure: 300 psi
RC-82100-OLP
Series: 80000
O.D.: 0.750 in
Outlet (M) NPTF: 1/2 in
Inlet (F) NPTF: 1/2 in
Hose Length: 100 ft
Hose Included: Yes
Thread Type: NPT
Max. Temperature: 150 Deg. F
I.D.: 1/2 in
Pressure: 300 psi
RC-83050-OLP
Series: 80000
O.D.: 1.075 in
Outlet (M) NPTF: 3/4 in
Inlet (F) NPTF: 3/4 in
Hose Length: 50 ft
Hose Included: Yes
Thread Type: NPT
Max. Temperature: 150 Deg. F
I.D.: 3/4 in
Pressure: 250 psi
RC-D83075-OLP
Series: 80000
O.D.: 1.075 in
Outlet (M) NPTF: 3/4 in
Inlet (F) NPTF: 3/4 in
Hose Length: 75 ft
Hose Included: Yes
Thread Type: NPT
Max. Temperature: 150 Deg. F
I.D.: 3/4 in
Pressure: 250 psi
RC-D84050-OLP
Series: D80000
O.D.: 1.375 in
Outlet (M) NPTF: 3/4 in
Inlet (F) NPTF: 1 in
Hose Length: 50 ft
Hose Included: Yes
Thread Type: NPT
Max. Temperature: 210 Deg. F
I.D.: 1 in
Pressure: 250 psi
